Save and Restore User Settings Solidworks



When reinstalling the system or Solidworks, you want to save your personal settings, in order to restore them later. Also it is convenient when transferring the Solidworks settings (toolbars, menus, hot keys) to another computer. The utility "SolidWorks Copy Settings Wizard", which is part of SolidWorks, will help us in this. The utility is on the path

"C:\Program Files\SolidWorks\SolidWorks\setup\i386\copyoptwiz.exe"

or in the "Start" menu - "All Programs"
Solidworks - утилита копирования и воcстановления настроек в Windows
Solidworks 2012 - Copy Settings Wizard.





In versions of Solidworks 2015 and later, you can run the utility directly from Solidworks.


Launch the "Solidworks Copy Settings Wizard".
Solidworks - The startup window of the utility for copying and restoring settings in the Solidworks menu


Choose Save Settings




Choose which settings you want to save and the location of the settings file. Done.


Restoring settings is done in a similar way.


Click "Restore Settings" - "Next"


We show the settings file and choose which settings to import.
Pay attention to the possibility of importing settings settings in different versions of Solidworks. The screenshot shows the restoration of the Solidworks 2016 settings using the utility from the Solidworks 2017 suite.


Just in case, put a check mark "Create backup copy" - "Done".


All. You can run Solidworks and enjoy the familiar interface.
If you tick the "Backup current settings" checkbox, the utility will save the file starting with the words "backup" before restoring the setting,
Solidworks - Файлы настроек Solidworks


You can restore Solidworks 2017 settings to Solidworks 2016 or earlier. Remember to change the location of toolbars in newer versions.

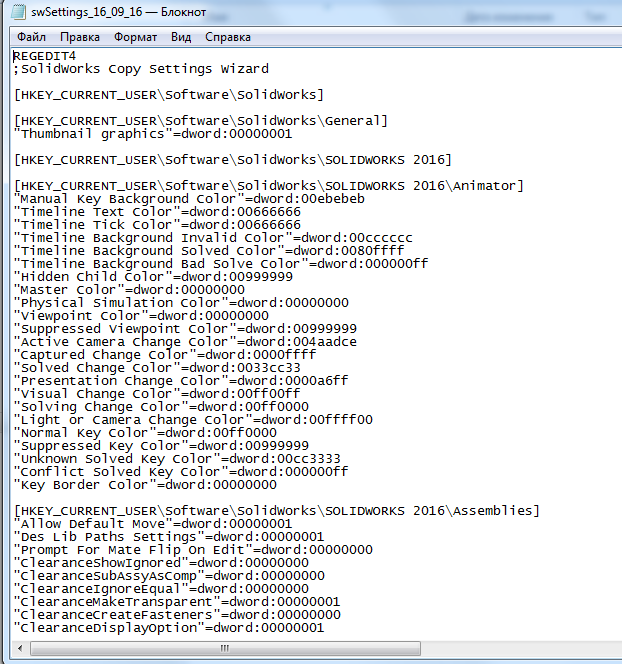

A file with saved settings is the most ordinary reg-file only with the extension "sldreg"


Thus, you can import the Solidworks settings even without the "Solidworks Copy Settings Wizard" utility, by simply entering data into the registry. This can be done by double clicking on the file and confirming the data entry in the registry, or through the Windows regedit utility.

Of course, you can restore settings to other Solidworks versions via the "Solidoworks Settings Copy Wizard", but if you want, you can change the year in the reg file to the required ones and also make the settings in other versions. For example, opening a file with a notebook and making a replacement for "2016" for "2015" we get the file of the settings Solidworks 2015.

Attention !!! When migrating from Solidworks 2008 or lower to Solidworks 2009 or higher, you should note that the default installation path has changed:

"C:\Program Files\SolidWorks\SolidWorks" - Solidworks 2008 or lower

"C:\Program Files\SolidWorks Corp\SolidWorks" -  Solidworks 2009 or higher.

понедельник, 13 ноября 2017 г.

The share sketch in Solidworks

There is one interesting feature in Solidworks that I did not find in the Solidworks help or was looking badly :). Use one sketch in different elements. To do this, select the sketch by clicking the left mouse button on the sketch, (first open it in the tree) and click on the desired element: draw, cut, etc. After that, enter the parameters and confirm. As a result, you will get an element that is created with a sketch from another element. The icon for such a sketch, used in several elements, looks like a sketch with the palm opened under it, similar to the common folders in Windows.
Solidworks общий эскиз


You can use sketches of different elements in other elements repeatedly.
For example, we'll make a figurine on the panel, we'll simulate it the way it is done in the production: we make the workpiece and then milling it along the contour.
Solidworks общий эскиз

Use the "Swept Cut"


Solidworks общий эскиз - заготовка

Specify the profile

Solidworks общий эскиз

and the trajectory of the cutout

Solidworks общий эскиз

Repeat our actions for the other side of the workpiece

Solidworks общий эскиз




Solidworks общий эскиз


As a result, we received a parametric panel.


Solidworks общий эскиз в параметрической филенке


See this video.
